NUSCAN 4500T
NUSCAN 4500T
C$189.99
Excluding GST/HST

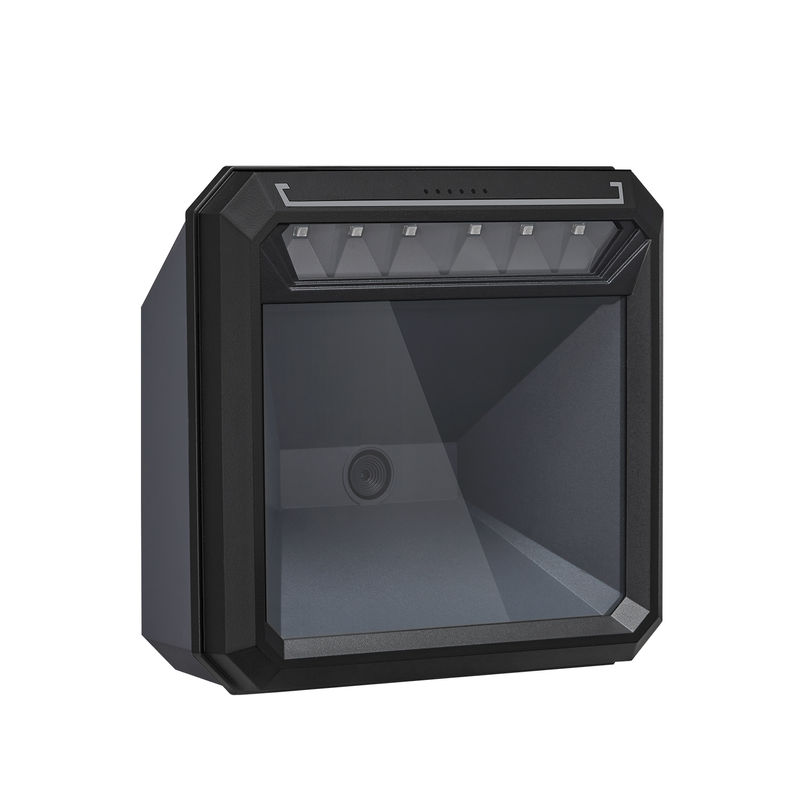

The Adesso Nuscan 4500T is a high-performance USB 2D desktop barcode scanner, perfect for use in retail, grocery stores, library, and office environments. Its fixed mount position allows users to simply place the barcode in front of the scanner for automatic scanning, freeing up their hands for other tasks. With a 2D scanning engine, this scanner can quickly and accurately read all types of barcodes, including QR codes and Data Matrix codes. Its superior scanning performance and reliable data collection ensure that no barcode is missed. This scanner is durable and can capture barcodes from a distance, reducing the need for manual scanning. Whether you need to scan barcodes on products or books the Adesso Nuscan 4500T is a reliable and efficient solution.
Quantity
Features
Fixed Mount Position
Perfect for Medical equipment, airports, and restaurants that require a fixed position to be able to scan quickly and efficiently.
Superior Scanning Performance
Equipped with its CMOS sensor the device has a motion tolerance of 24 inches per second, offering fast and accurate scanning results.
2D Scanning Engine
The 2D scanning engine offers decoding capability for 2D barcodes like PDF417, Data Matrix, QR Code, MicroQR as well as common 1D barcodes.
Short Range Scanning
The 2D CMOS decoding engine is able to scan barcodes in a fast-paced environment such as grocery stores that require short-range scanning.
Perfect for Medical equipment, airports, and restaurants that require a fixed position to be able to scan quickly and efficiently.
Superior Scanning Performance
Equipped with its CMOS sensor the device has a motion tolerance of 24 inches per second, offering fast and accurate scanning results.
2D Scanning Engine
The 2D scanning engine offers decoding capability for 2D barcodes like PDF417, Data Matrix, QR Code, MicroQR as well as common 1D barcodes.
Short Range Scanning
The 2D CMOS decoding engine is able to scan barcodes in a fast-paced environment such as grocery stores that require short-range scanning.
Specifications
Technical Information
Connectivity Technology
Cable
Scanning Capability
- 1D
- 2D
Barcode Symbology Supported
1D:
- EAN-8
- EAN-13
- EAN-13 2 add-on
- EAN-13 5add-on
- ISSN, ISBN
- UPC-A
- UPC-E
- Code 11
- Code 32
- Code 39
- Code 93
- Code 128
- Codabar
- Industrial 2 of 5
- Interleaved 2 of 5
- Matrix 2 of 5
2D:
- PDF417
- MicroQR
- Data Matrix
- QR
Light Source
LED
Image Sensor Type
CMOS
Depth of Field
0-12 inches (@20mil EAN-13, PC 100%)
Scanner Range
Short Range
Reading Angle (Pitch)
70°
Reading Angle (Roll)
360°
Motion Tolerance
24 in/s
Minimum Print Contrast
20%
Image Sensor Resolution
640 x 480
Network & Communication
Bluetooth
Yes
Interfaces/Ports
Host Interface
USB
Power Description
Input Current
13 mA
Environmental Conditions
Operating Temperature
32°F (0°C) to 140°F (60°C)
Storage Temperature
-40°F (-40°C) to 158°F (70°C)
Physical Characteristics
Form Factor
Desktop
Height
3.3"
Width
5.9"
Length
6.1"
Weight (Approximate)
13.28 oz
Miscellaneous
Package Contents
- NuScan 4500T USB 2D Desktop Barcode Scanner
- Quick Start Guide
Application/Usage
- Retail
- Library
- Warehouse
- Industrial
Platform Supported
- PC
- Mac
Environmentally Friendly
Yes
Environmental Certification
- RoHS
- WEEE
Country of Origin
China
Technical Information
| Connectivity Technology | Cable |
| Scanning Capability |
|
| Barcode Symbology Supported | 1D:
2D:
|
| Light Source | LED |
| Image Sensor Type | CMOS |
| Depth of Field | 0-12 inches (@20mil EAN-13, PC 100%) |
| Scanner Range | Short Range |
| Reading Angle (Pitch) | 70° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 24 in/s |
| Minimum Print Contrast | 20% |
| Image Sensor Resolution | 640 x 480 |
Network & Communication
| Bluetooth | Yes |
Interfaces/Ports
| Host Interface | USB |
Power Description
| Input Current | 13 mA |
Environmental Conditions
| Operating Temperature | 32°F (0°C) to 140°F (60°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
Physical Characteristics
| Form Factor | Desktop |
| Height | 3.3" |
| Width | 5.9" |
| Length | 6.1" |
| Weight (Approximate) | 13.28 oz |
Miscellaneous
| Package Contents |
|
| Application/Usage |
|
| Platform Supported |
|
| Environmentally Friendly | Yes |
| Environmental Certification |
|
| Country of Origin | China |
Shipping Info
Item
UPC Code
Package Dimensions
Package Weight
Qty/Carton
NuScan 4500T
783750012157
9” x 6.5” x 3.75”
1.55 lb
10
Item
UPC Code
Package Dimensions
Package Weight
Qty/Carton
NuScan 4500T
783750012157
9” x 6.5” x 3.75”
1.55 lb
10
